S86
MODEL:S86
●Outstanding Waterproof Capability
●Extremely Rugged Housing
●Advanced OLED Screen
●Inbuilt Radio Transmitter
●Inbuilt Double Batteries
●Inbuilt GPRS/GSM Module
Product Feature :
Advanced OLED Screen
Upgraded from the LCD screen of the former model, this receiver is installed with a more attractive one, 1.54' OLED. Mode settings and status display are easily acknowledged from the screen, yet it features largely in high brightness and low power consumption, which is just tailored to the tough fieldwork.
Outstanding Waterproof Capability
The compact unit is built to IP67 standard and protected from long time immersion to depth of 1m. It's ideal to work in extremely tough conditions like heavy rain, or even dropping into water for long time.
Extremely Rugged Housing
This tough receiver, well edged with hard plastics, is designed to survive a 2.5m pole drop onto the concrete, ideal for working in severe condition.
 | With the outstanding built-in radio transmitter feature and interchangeability, base and rover can be switched very easily by just moving the tripod and controller or even preparing another set of tripod, carbon fiber pole and controller for fast and simple setup. It brings you more convenience that most of other regular RTK receivers cannot. To maximize the working range, the base station is highly recommended to set up in an elevated area with little obstruction. |
BD970 Motherboard Equipped
Market-proven Pacific Crest Maxwell 6 technology delivers demonstrated performance and outstanding efficiency.
Inbuilt GPRS/GSM Module
Such a module enables this receiver to be multifunctional. You can easily change between radio RTK mode and network RTK mode subject to practical condition. Interchangeability would definitely get you a very economical solution
Inbuilt Double Batteries
Double batteries (8800mAh totally) that can last up to 20 hours (in full charge) are built-in the rugged unit, which provides almost continuous operation in 2-3 working days. And it greatly reduces the likelihood of low power during any full-day job.
Inbuilt Radio Transmitter
The 0.5-2W (adjustable) transmitting radio module (XDL optional) equipped inside is a distinctive feature that brings you great convenience. Within the effective working range (3-5km typical, 8-10km optimal), the base and rover can be switched freely while displacing the external radio as well as the external battery is no longer necessary.

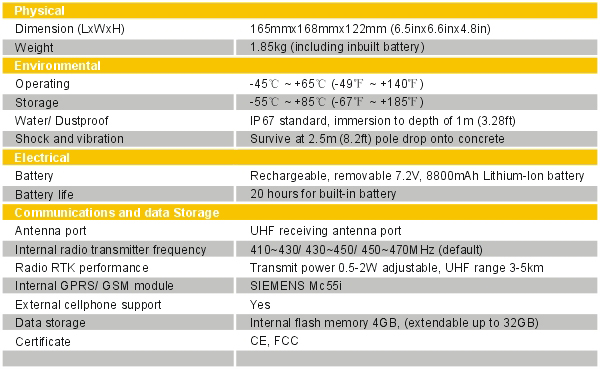

Specification :
